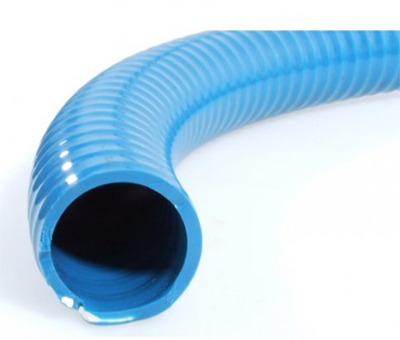

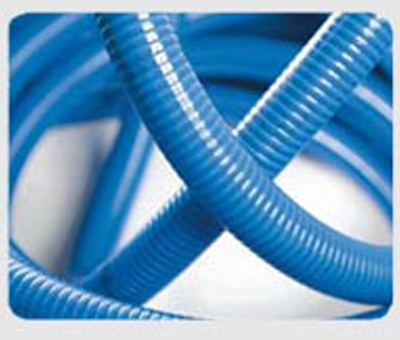

Riverflex Oil Hose is useful for suction and discharge of oils. It is very helpful in petro chemical industrial companies. Application in load and products derived from oil and great variety of chemical products such as Diesel fuels, Kerosene, Transformer oils etc. Available size 20mm to 150mm. Color - Blue - As per Customer demand
| Description | Size (mm) | Wall Thickness (mm) | Dimensions (mm) + 0.75 mm | Pressure Kg/cm2 at 20 deg | Coil Length | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ID | OD | WP | BP | ||||||||
| Oil Hose | 25 | 3.5 | 25 | 32 | 8 | 28 | 30 | ||||
| 30 | 4 | 30 | 38 | 7 | 24.5 | 30 | |||||
| 40 | 4.5 | 40 | 49 | 5.5 | 19.25 | 30 | |||||
| 50 | 5 | 50 | 60 | 4.5 | 15.75 | 30 | |||||
| 65 | 5.5 | 65 | 76 | 4.5 | 15.75 | 30 | |||||
| 75 | 6 | 75 | 87 | 4.5 | 15.75 | 30 | |||||

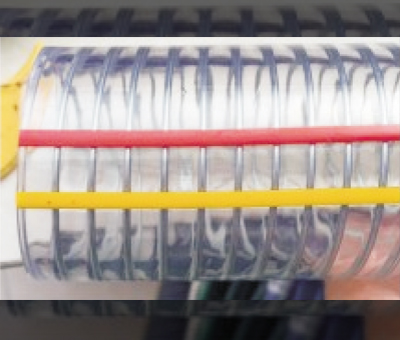

Thunder hose (Non Toxic) Steel wire braided hose
Size : 10mm to 150mm

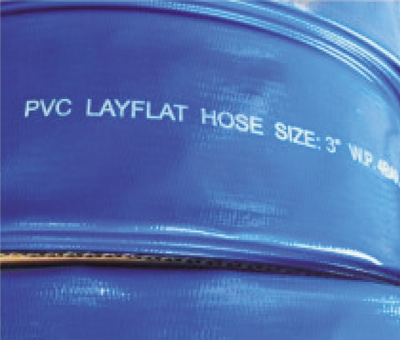

PVC Reinforce layflat hose.
