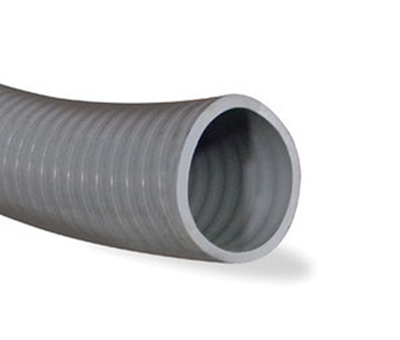

Riverflex suction hose are ideal for heavy duty suction and delivery of abrasive materials in industry such as coal & mineral mines, stone & lime quarries, shipping, sewage disposal, aquaculture, paper mills, cement industries, chemicals industries petrochemicals, oil exploration and in various, construction activities, etc. Available Size 20mm to 150mm. Color - Grey - As per Customer demand
| Description | Size (mm) | Wall Thickness (mm) | Dimensions (mm) + 0.75 mm | Pressure Kg/cm2 at 20 deg | Coil Length | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ID | OD | WP | BP | ||||||||
| Suction Hose (Heavy Duty) | 25 | 4.5 | 25 | 34 | 8 | 24 | 30 | ||||
| 30 | 5 | 30 | 40 | 7 | 21 | 30 | |||||
| 40 | 5.5 | 40 | 51 | 4.5 | 13.5 | 30 | |||||
| 50 | 6 | 50 | 62 | 4.5 | 13.5 | 30 | |||||
| 65 | 6.5 | 65 | 78 | 4.5 | 13.5 | 30 | |||||
| 75 | 7 | 75 | 89 | 4.5 | 13.5 | 30 | |||||
| 100 | 7.5 | 100 | 115 | 4 | 12 | 15/18 | |||||
| 125 | 7.5 | 125 | 140 | 3 | 9 | 15/18 | |||||
| 140 | 8 | 140 | 156 | 3 | 9 | 15/18 | |||||
| 150 | 9.5 | 150 | 169 | 2.5 | 7.5 | 15/18 | |||||
| 200 | 11 | 200 | 222 | 2.5 | 7.5 | 6/4.5 | |||||
| RIVERFLEX HEAVY DUTY GREEN SUCTION HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Size | Diameter | Bending Radius MM | Pressure (at 30o C) | Standard Lengths MTRS | |||||||
| MM | INCH | ID MM | OD MM | Working kg/CM2 | Bursting kg/CM2 | |||||||
| 25 | 1" | 25.4 +-0.5 | 31.5 +-0.5 | 48 | 8.0 | 25.0 | 30 | |||||
| 30 | 1.25" | 31.8 +-0.5 | 38.8 +-0.5 | 68 | 7.0 | 21.0 | 30 | |||||
| 40 | 1.50" | 38.0 +-0.5 | 46.3 +-1.5 | 70 | 5.5 | 18.0 | 30 | |||||
| 50 | 2" | 50.8 +-0.5 | 60.8 +-1.5 | 100 | 4.5 | 18.0 | 30 | |||||
| 65 | 2.50" | 63.5 +-1.5 | 74.5 +-1.5 | 120 | 4.5 | 18.0 | 30 | |||||
| 75 | 3" | 76.2 +-1.0 | 87.2 +-1.5 | 155 | 4.5 | 18.0 | 30 | |||||
| 100 | 4" | 101.2 +-1.5 | 114.2 +-2.0 | 213 | 4.0 | 14.0 | 15/18/30 | |||||
| 125 | 5" | 127.0 +-1.5 | 141.0 +-2.0 | 230 | 3.0 | 10.0 | 15/18 | |||||
| 150 | 6" | 152.4 +-1.5 | 169.4 +-2.0 | 375 | 2.5 | 9.0 | 15/18 | |||||
| 200 | 8" | 203.2 +-2.0 | 224.4 +-2.0 | 600 | 2.5 | 8.0 | 4.5/6 | |||||
